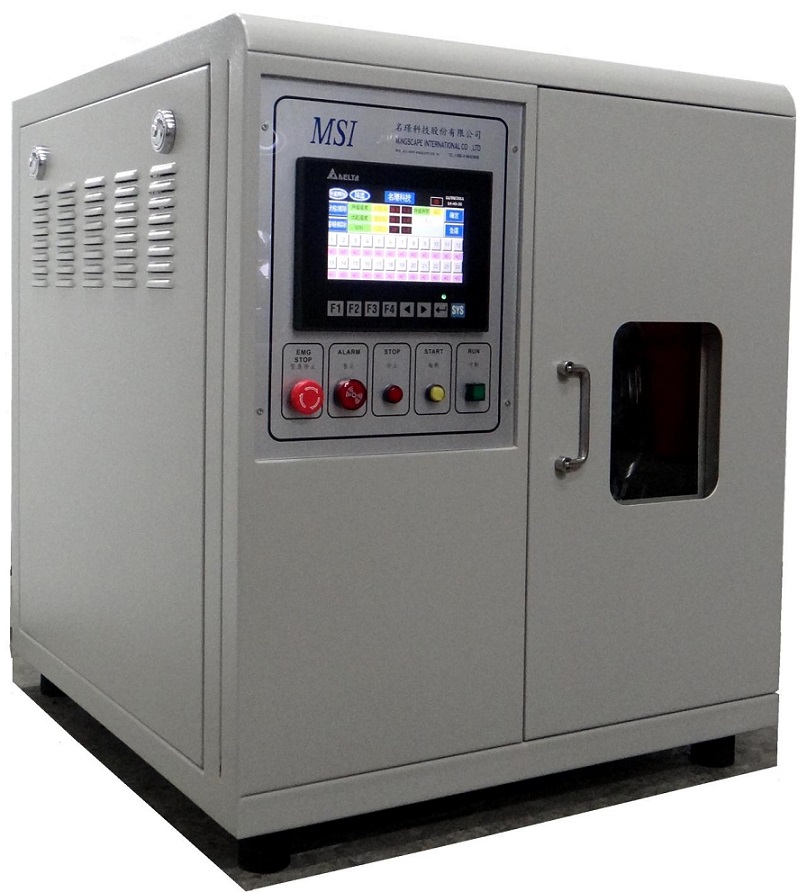

Touch screen LCD display & Microprocessor Controller |
|
The
MIR is the latest technology of laboratory dyeing machine, applying the
radiation heat of IR- radiators, to evenly heat up the dye pots without
conventional heat-medium.
It
provides the most clean way of sample dyeing and the most energy-saving too.
It
performs the excellent dyeing repeatability and highly leveling result.

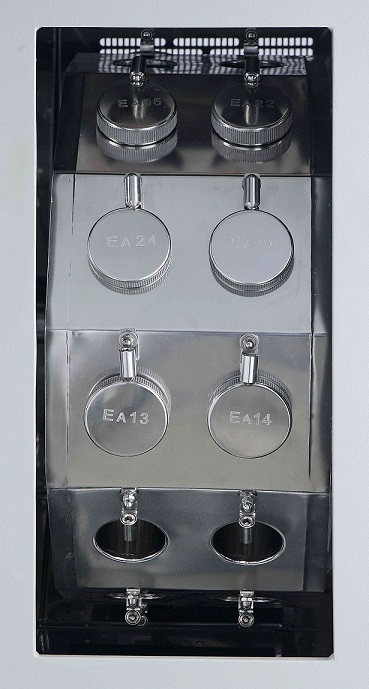

The
included angle of dye pots attached to the rotary disk assure the good liquor
circulation by the forward and reverse rotating of the disc.
|
[Specification]
|
Pot
|
150cc x
24,
300cc x 24 or
500cc x 24. |
|
Doser
|
Optional |
|
Rotate speed
|
5 ~ 60 RPM |
|
Heating rate
|
5ºC/m,0.1~5ºC/m |
|
Temp. Range
|
Room temp. ~
140ºC |
|
Programs
|
99 programs and
10*4steps |
|
Manual step control
|
Inch, Home t control. |
|
Power
|
220v±10% ,50/60
hz,single phase,4.5kw |
|
Size
|
W860,D690,H1026mm |
|
Weight
|
90kg |
|
|
Features |
Applications |
 |
Dyeing
process simulation as the machine of dyeing house. |
|
Temperature
detecting from solution directly. |
|
3D rotation. |
|
Digital speed control (5~60
rpm),. |
|
Save power.(4.5kw
Maximum) |
|
Equipped
with chemical doser. (Optional) |
|
Adding
chemicals no need open the cover. |
|
Over heating
protect. |
|
Is
equipped
with foot control panel, more convenience and safely. |
|
Making in stainless
SUS 316, suitable for using in any
environments. |
|
The machine has passed TUV tested and
certificated. |
|
IR
dyer is an idea for concentration, wash fastness, step dyeing test, fabric
streak and barre analysis, exhaustion tests on various yarns and fabrics tests
especially on N, N/C , T/N, Tencel , Polynosic materials in woven, knitted
or elastic form. |
|
